SPECIFICATIONS

Brand Name: Reolink

Origin: Mainland China

High Definition: 8.0 Megapixels

Hign-concerned Chemical: none

Supported Operating Systems: Windows 7

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 10

Lens (mm): 2.8mm

Style: Turret Camera

Connectivity: RJ45

Installation: Ceiling

Installation: Side

Installation: Normal

Installation: Wall Mounted

Minimum Illumination(Lux): 100

Scene: Indoor and outdoor

Color Night Vision: YES

Megapixels: 8MP

Storage: None

Video Compression Format: H.264

Video Compression Format: H.265

IR Distance(m): 30 meters

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

Dimensions (L x W x D)(mm): 137 * 137 * 98.5 mm

Color: WHITE

Alarm Action: FTP Photo

Alarm Action: telefon Alarm

Alarm Action: Email Photo

Alarm Action: Local Alarm

is_customized: No

Model Number: Dual-lens Vandal-Proof PoE Camera

Supported Mobile Systems: Android

Supported Mobile Systems: IOS

Smart home platform: Alexa

Smart home platform: Google Assistant

AI Functions: Pet Detection

IP Rating: IP67

Special Features: Vandal-proof

App name: other

TF Card: None

Digital Zoom: other

Power Supply(V): DC 12.0V/1A

Audio Output: Two Way Audio

Power Consumption(W): <12W

Sensor: CMOS

Operating Temperature: -10°-60°

Shell Material: Plastic

Power Supply: With POE

Viewing Angle : 180°

Optical Zoom: none

Rechargeable Battery: none

Image Sensor: 8MP Cam:1/2.65"; 16MP Cam:1/2.8"

Resolution: 8MP Cam:5120x1552 (8MP); 16MP Cam:7680x2160 (16MP)

Frame rate: Max. 20 FPS

Lens: f=2.8mm/F1.6

Field of Horizontal View: 180°

Field of Vertical View: 8MP Cam:57°; 16MP Cam:53°

Infrared Night Vision: 30 meters (LED: 6pcs/20mil/850nm) (Auto-switching with IR-cut filter)

Color Night Vision: With Spotlight: 6pcs/1.6W/4500K/540-840 Lumens

PoE: IEEE 802.3af, 48V, active

DC Power: DC 12.0V/1A, <12W

Ethernet Port: One 10M/100Mbps; RJ45

SD Card Slot: Supports Max. 256GB microSD card (not include)

Reset Button: Yes

Browsers Supported: Edge, Chrome, Firefox, Safari

OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP,SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

User Access: Max. 20 users;Max. 12 simultaneous streams

Smart Alarm: Motion detection; person detection; vehicle detection; animal detection

Recording Modes: Motion-triggered recording (default); scheduled recording; 24/7 recording

Time Lapse: Yes

Operating Temperature: -15℃ to 45℃

Operating Humidity: 10% to 90%

Weight: 664g

Limited Warranty: 2-year limited warranty

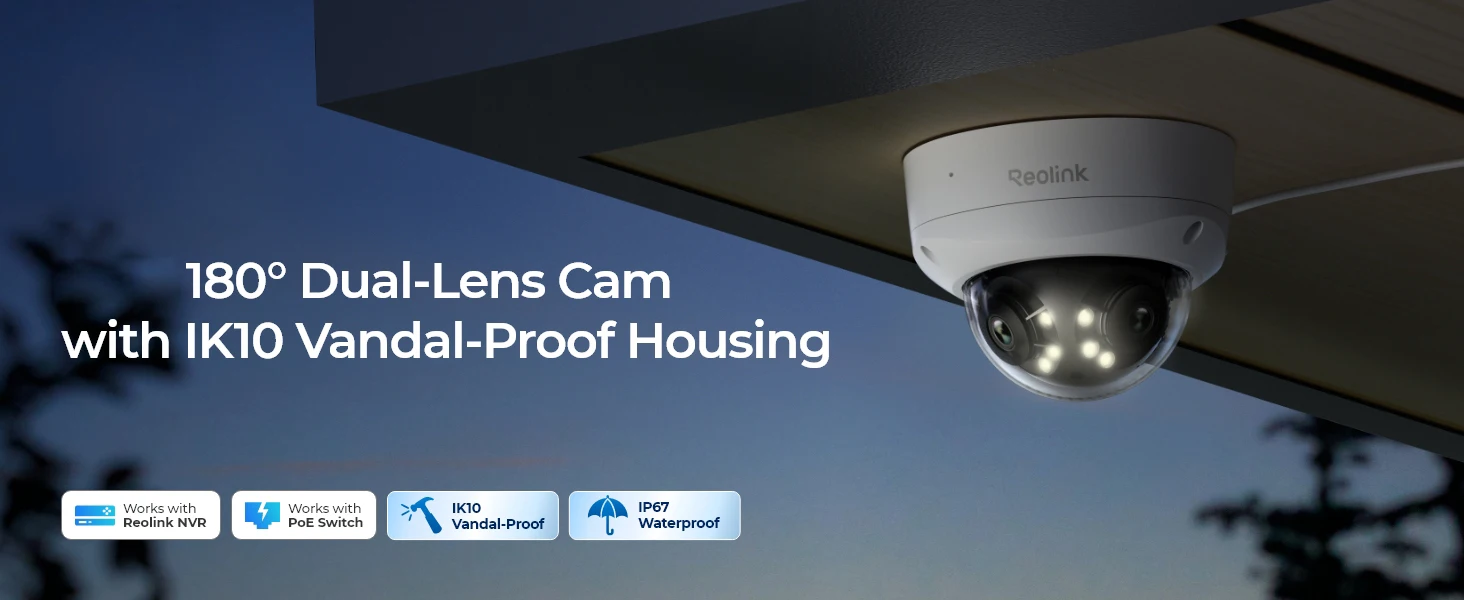

180° Panorama. No Blind Spots Here

With dual-image stitching technology, the camera field of view is expanded to 180° ultra wide, delivering a seamless and distortion-free panoramic image.

4K Footage for Stunning Days and Nights

Reveal every scene in ultra-clear detail with the 4K image sensor. With customizable spotlights and infrared LEDs, you may rest assured even at night with 3 night vision options.

Stands Strong

Rated IK10 vandal-proof & IP67 waterproof, this camera withstands intentional damage or tampering from would-be burglars, and built to withstand all elements and weather conditions.

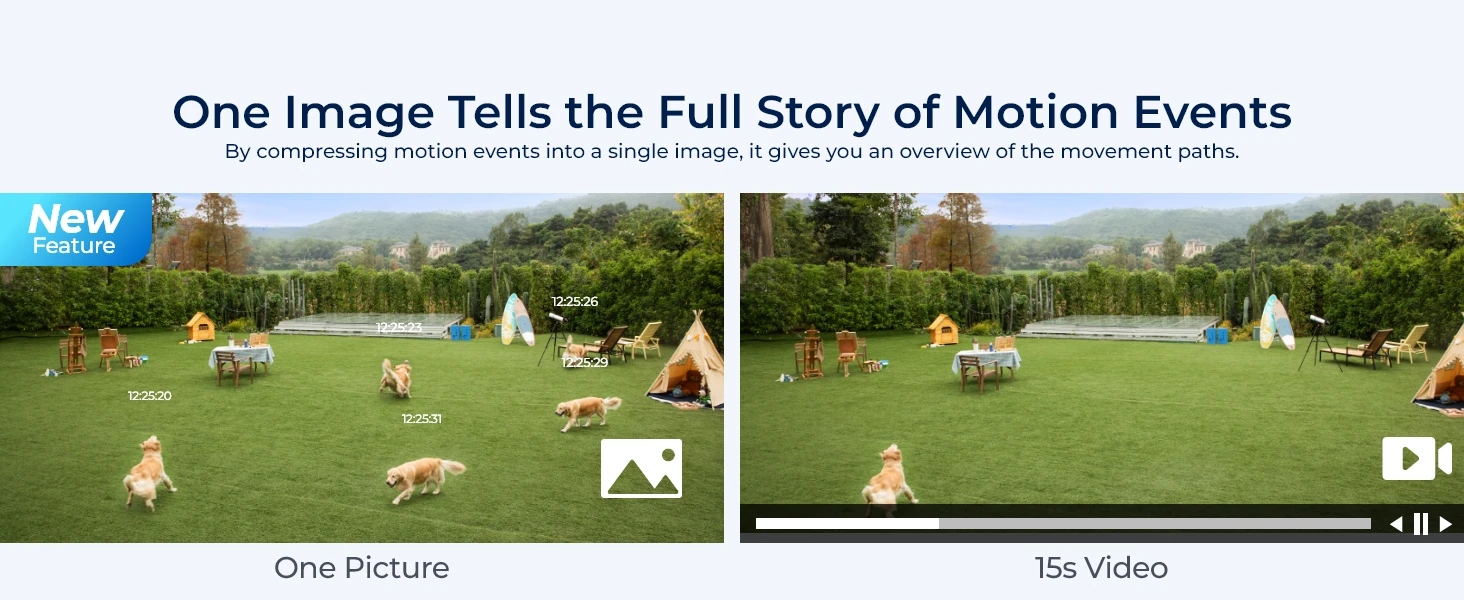

Innovative Motion Track

Motion Track, a new feature from Reolink, summarizes 15 seconds of motion events into a single image.

(The 8MP Cam don't support the motion track)

More Accuracy. No Fees.

By distinguishing between people, vehicles, and animals from other objects, this camera minimizes false alarms caused by shadows or leaves.

Illuminate Threats, Sound Off Alarms

Equipped with motion-activated spotlights and siren, the vandal-proof PoE camera provides sound & light dual deterrents upon detection events.

Two-Way Audio

Camera built-in mic and speaker, you can engage in real-time conversation.Note: When connected to RLN8-410 or RLN16-410, this feature is available only through the Reolink App/Client.

Power over Ethernet Tech,Easy Setup

Equipped with crafted mounting brackets, this camera can be easily installed on the ceiling or wall.

Remote Camera Access, No Subscription Needed

Supports max.12 devices to live stream at the same time (2 mainstreams & 10 substreams).

Stunning Time-Lapse Videos

Condense an entire day's events into captivating minutes. Enjoy mesmerizing transformations.

Access Your Camera From Anywhere, Anytime

Select from versatile storage options including microSD card, Reolink NVR, or FTP server. Access real-time live view across multiple channels anytime, from anywhere, via Reolink App or Client.
